| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | XINSHENG |

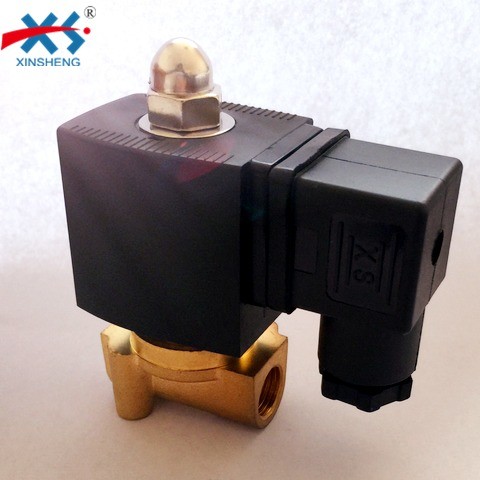

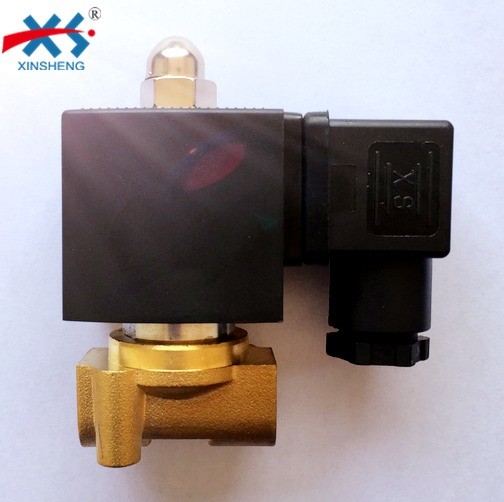

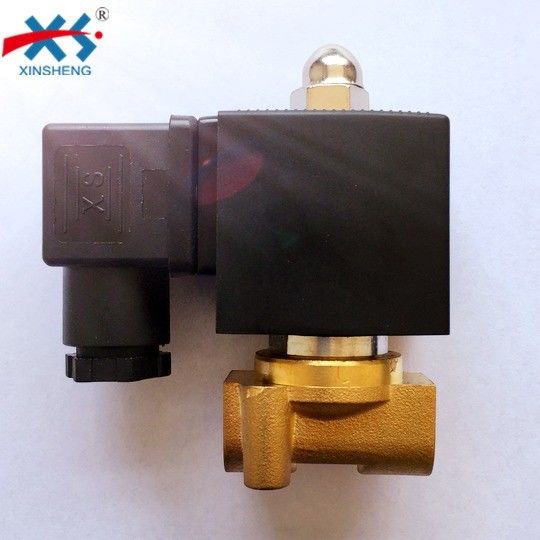

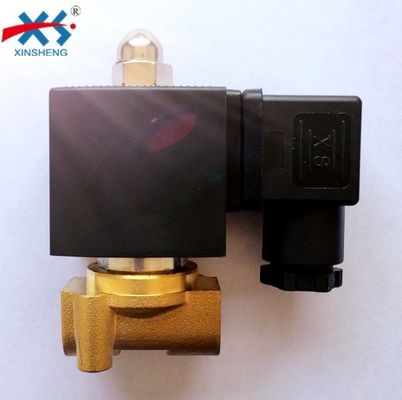

| Model Number: | 2W025-08K |
| Minimum Order Quantity: | 1 Piece |
| Price: | $3.50 - $4.50/sets |
| Application: | General | Port Size: | 1/4 Inch BSP / NPT |
|---|---|---|---|
| Power: | Solenoid | Temperature Of Media: | Medium Temperature |
| Type: | Solenoid | Structure: | Direct Acting |
| Media: | Water/hotwater/gas | Customized Support: | OEM |
| Standard Or Nonstandard: | Standard | Coil Type: | Din Coil IP65 |
| NC Or NO: | Normally Open | Voltage: | AC 220V/110V DC 12V/24V Or Other Can Be Customized. |
| Sealing: | NBR / EPDM / FKM |
| Model | Port Connect |
DN (mm) |
Cv | Operating pressure ( Bar) | Max temperature of fluid |
Coil | Dimension | |||||||||
| Min | Max pressure | Class | Power | |||||||||||||
| Air mashgas |
water. hotwater. liquid |
Light oil ≤20CST |
AC220 | DC24 | L x W x H AXBXC (mm) |
|||||||||||
| AC | DC | AC | DC | AC | DC | NBR | FKM | VA | W | |||||||
| 2W025-08K | 1/4" | 2.5 | 0.23 | 0 | 8 | 8 | 8 | 8 | 6 | 4 | 80℃ | 180℃ | F | 22 | 17 | 40x30 x110 |
| 2W040-10K | 3/8" | 4 | 0.6 | 4 | 4 | 4 | 4 | 4 | 3 | 30 | 30 | 47x32 x112 | ||||
| 2W040-10K | 3/8" | 16 | 4.8 | 8 | 8 | 8 | 8 | 4 | 4 | 30 | 30 | 64x56 x120 | ||||
| 2W160-15K | 1/2" | 16 | 4.8 | 8 | 8 | 8 | 8 | 4 | 4 | 30 | 30 | 64x56 x120 | ||||
| 2W200-20K | 3/4" | 20 | 7.6 | 8 | 8 | 8 | 8 | 4 | 4 | 30 | 30 | 65x56 x126 | ||||
| 2W250-25K | 1" | 25 | 12 | 8 | 8 | 8 | 8 | 4 | 4 | 30 | 30 | 85x73 x138 | ||||
| 2W320-32K | 1 1/4" | 30 | 20 | 8 | 8 | 8 | 8 | 4 | 4 | 30 | 30 | 94x79 x150 | ||||
| 2W320-32K | 1 1/4" | 32 | 24 | 6 | 6 | 6 | 6 | 4 | 4 | 35 | 30 | 110x88 x166 | ||||
| 2W400-40K | 1 1/2 " | 36 | 26 | 6 | 6 | 6 | 6 | 4 | 4 | 35 | 30 | 110x88 x170 | ||||
| 2W400-40K | 1 1/2 " | 40 | 29 | 6 | 6 | 6 | 6 | 4 | 4 | 35 | 30 | 112x94x172 | ||||
| 2W500-50K | 2 " | 46 | 40 | 6 | 6 | 6 | 6 | 4 | 4 | 35 | 30 | 118x94x185 | ||||
| 2W500-50K | 2 " | 50 | 48 | 6 | 6 | 6 | 6 | 4 | 4 | 35 | 30 | 155x114x188 | ||||
2W160-15K 1/2inch https://www.alibaba.com/product-detail/2W160-15K-1-2-inch-normally_60702972202.html?spm=0.manage.list.56.6ca1e2a3pFzWrj
2W200-20K 3/4inch https://www.alibaba.com/product-detail/2W200-20K-3-4-inch-Normally_60702967497.html?spm=0.manage.list.47.6ca1e2a3pFzWrj
2W250-25K 1inch https://www.alibaba.com/product-detail/2W250-25K-1-inch-Normally-Open_60701246302.html?spm=0.manage.list.4.6ca1e2a3pFzWrj
2W320-32K 1-1/4inch https://www.alibaba.com/product-detail/2W320-32K-1-1-4-inch_60701246307.html?spm=0.manage.list.59.6ca1e2a3pFzWrj
2W400-40K 1-1/2inch https://www.alibaba.com/product-detail/2W400-40K-1-1-2-inch_60702976268.html?spm=0.manage.list.53.6ca1e2a3pFzWrj
2W500-50K 2inch https://www.alibaba.com/product-detail/2W500-50K-2inch-Normally-Open-water_60700609930.html?spm=0.manage.list.50.6ca1e2a3pFzWrj
For Neutral packing or OEM customized packing, welcome to contact us.
