| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | XINSHENG |
| Model Number: | LZS-32D |
| Minimum Order Quantity: | 1 Piece |
| Price: | $9.40/pieces 1-499 pieces |
| Packaging Details: | Whiter box +polybag |
| Customized Support: | OEM | Type: | Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters |
|---|---|---|---|
| Material: | Plastic | Connection: | G1/2 Female Or Glue Joint |
| Accuracy: | ± 4% | Medium: | Water And Liquid |
| Flow Range: | 10-600l/h See Below Details | Pressure: | 0.6Mpa |
| YUYAO XINSHENG SOLENOID VALVE CO.,LTD | |||||||

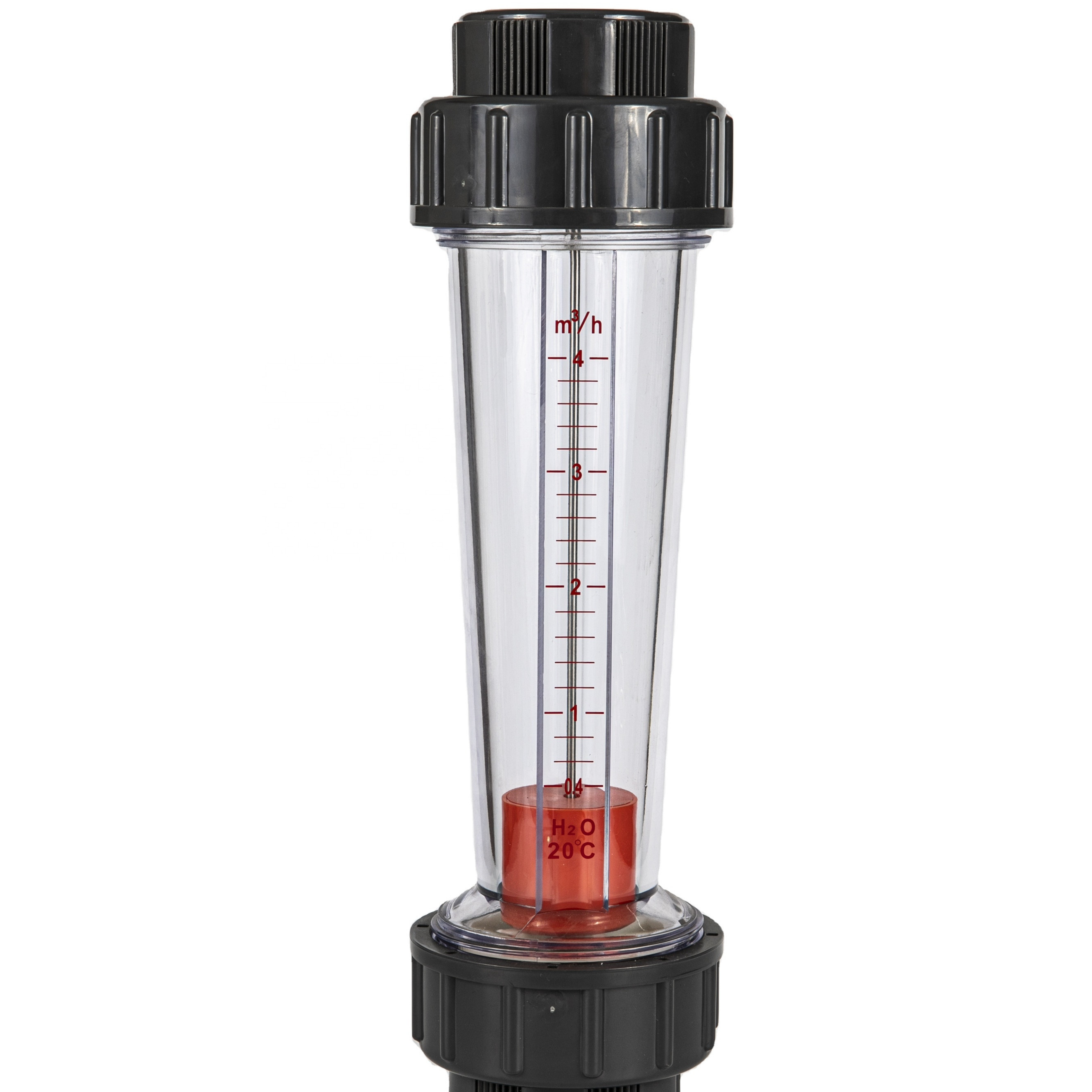

| Plastic tube flow meter Price | |||||||
| Long tube (No Guide Rod) | Short Tube (With Guide Rod) | ||||||
| Model | DN & Connect | Length (mm) | Flow Range | Model | DN & Connect | Length (mm) | Flow Range |
| LZS-15 | DN15 Female BSP 1/2" | 280 | 10-100L/h | LZS-15D | DN15 Female BSP 1/2" | 202 | 10-100L/h |
| 16-160L/h | 16-160L/h | ||||||
| 25-250L/h | 25-250L/h | ||||||
| 40-400L/h | 40-400L/h | ||||||
| 60-600L/h | 60-600L/h | ||||||
| 80-800L/h | 80-800L/h | ||||||
| 100-1000L/h | 100-1000L/h | ||||||
| LZS-20D | DN20 Female BSP 1/2" | 231 | 60-600L/h | ||||
| 100-1000L/h | |||||||
| 160-1600L/h | |||||||
| LZS-25 | DN25 Female BSP 3/4" | 380 | 100-1000L/h | LZS-25D | DN25 Female BSP 3/4" | 226 | 100-1000L/h |
| 160-1600L/h | 160-1600L/h | ||||||
| 250-2500L/h | 250-2500L/h | ||||||
| 300-3000L/h | 300-3000L/h | ||||||
| LZS-32 | DN32 Female BSP1" | 288 | 0.4 - 4 m³/h | LZS-32D | DN32 Female BSP1" | 288 | 400-4000L/h |
| 0.6 - 6 m³/h | 600-6000L/h | ||||||
| LZS-40 | DN40 Female BSP 1-1/4" | 430 | 0.4 - 4 m³/h | ||||
| 0.6 - 6 m³/h | |||||||
| 1 - 10 m³/h | |||||||
| 1.2 - 12 m³/h | |||||||
| LZS-50 | DN50 Female BSP1.5" | 430 | 0.4 - 4 m³/h | LZS-50D | DN50 Female BSP1.5" | 341 | 1 - 10 m³/h |
| 0.6 - 6 m³/h | |||||||
| 1 - 10 m³/h | 1.6 - 16 m³/h | ||||||
| 1.6 - 16 m³/h (with guide rod) | |||||||
| LZS-65D | DN65 Female BSP2" | 430 | 2.5 - 16 m³/h | ||||
| 5 - 25 m³/h | |||||||
| 8 - 40 m³/h | |||||||
| 12 - 60 m³/h | |||||||
| Below Flange connection: | |||||||
| LZS-65F | DN65 Female BSP2" | 430 | 2.5 - 16 m³/h | LZS-80F | Flange | 540 | 2.5 - 16 m³/h |
| 5 - 25 m³/h | 5 - 25 m³/h | ||||||
| 8 - 40 m³/h | 8 - 40 m³/h | ||||||
| 12 - 60 m³/h | 12 - 60 m³/h | ||||||
| LZS-100F | DN100 Flange | 550 | 12 - 60 m³/h | LZS-125F | DN125 Flange | 550 | 14 - 90 m³/h |
| 18 - 120 m³/h | |||||||
| 14 - 90 m³/h | 20 - 150 m³/h | ||||||
| 25 - 180 m³/h | |||||||
| 25 - 200 m³/h | |||||||
| LZS-150F | DN 150 Flange | 560 | Customized | ||||
Connection Type:
1. BSP Threaded (female)
2. Glue type:
3. Flange type
Material
